Introduction
MRI scanners have a typical operational lifespan of 10–15 years. When the time comes to replace an aging system — or to upgrade from a 1.5T to a 3T scanner — the existing Faraday cage must be evaluated to determine whether it can meet the new equipment's requirements or needs to be upgraded.
A shielding retrofit is not always a full tear-out and rebuild. In many cases, targeted upgrades to the RF door, observation window, penetration panel, or specific wall sections can bring an existing room up to specification — at a fraction of the cost and downtime of a complete replacement. This guide covers the key scenarios that trigger a retrofit, the assessment process, and the upgrade options available.
When Does MRI Shielding Need Upgrading?
Scanner Replacement with Higher Field Strength
The most common trigger. A facility replacing a 1.5T scanner with a 3T system faces a higher Larmor frequency (127.74 MHz vs. 63.87 MHz) and often tighter SE requirements. A cage that performed adequately at 1.5T may not meet the 3T manufacturer's specification — particularly at the door, window, and penetration points where SE margins are typically thinnest.
Declining Shielding Effectiveness
Over time, door seals wear, gaskets degrade, and corrosion develops at panel joints. If annual SE spot checks show a progressive decline — or if MRI image artifacts increase in frequency — the shielding system may need targeted repairs or component replacement before it falls below the manufacturer's minimum specification.
Facility Renovation or Expansion
Building renovations near the MRI suite can introduce new sources of electromagnetic interference (new electrical panels, elevators, HVAC equipment) or require structural modifications that affect the Faraday cage. In some cases, the ACR zone layout must be reconfigured, which may require relocating the RF door or adding new penetrations.
Regulatory or Accreditation Requirements
Updated accreditation standards, changes in state health department requirements, or new MRI manufacturer specifications may raise the SE threshold that the existing room must meet. A room that was compliant at installation may no longer meet current standards.
The Shielding Assessment Process
Before deciding on the scope of a retrofit, a thorough assessment of the existing shielding is essential. This typically includes:
1. Full SE Survey
A comprehensive SE test (per IEEE 299) is performed at multiple points around the enclosure — walls, floor, ceiling, door, window, penetration panel, and all joints. This establishes a baseline SE map that identifies weak points and quantifies how far below the new scanner's specification the room currently measures.
2. Visual and Mechanical Inspection
A physical inspection of the shielding components: condition of door seals (finger-stock or gasket), observation window frame bonding, penetration panel filters, waveguide integrity, and the general state of panel joints and grounding connections. Corrosion, mechanical damage, and seal compression loss are documented.
3. Documentation Review
The original shielding installation records — material specifications, panel thickness, SE test reports from commissioning — are reviewed to understand the as-built design. If the original cage was overspecified (common in well-engineered installations), it may have sufficient margin for a field strength upgrade with minimal modifications.
4. Gap Analysis
The assessment data is compared to the new MRI manufacturer's site planning requirements. The gap analysis identifies exactly which components need upgrading and which can remain in service — the basis for a targeted, cost-effective retrofit plan.
Retrofit Options: Partial vs. Full Replacement

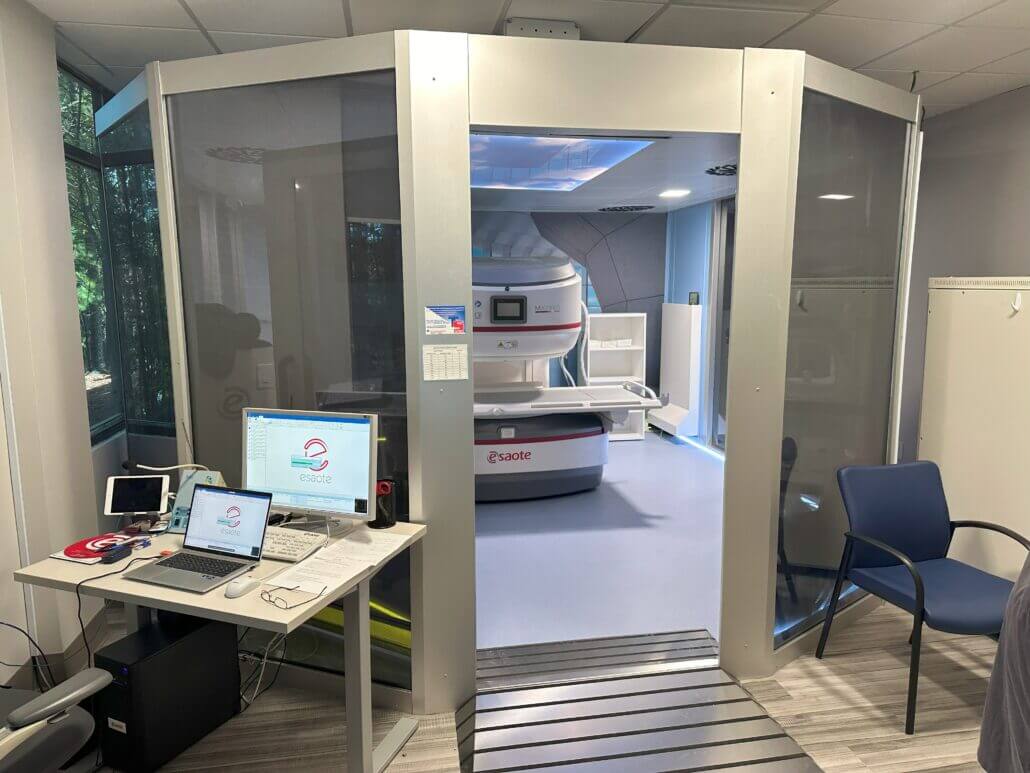

Component-Level Upgrades (Partial Retrofit)
When the existing wall, floor, and ceiling panels still meet or are close to the new SE specification, the most cost-effective approach is to upgrade only the underperforming components:
- RF door replacement: the single most impactful upgrade. A new door with fresh finger-stock seals and improved threshold design can recover 15–25 dB of SE at the door location. Modern sliding doors can replace older swing doors without modifying the wall opening.
- Observation window upgrade: replacing an aging copper mesh window with a new unit — or upgrading from a single-mesh to a hybrid (mesh + conductive coating) design — can improve both SE performance and optical clarity.
- Penetration panel replacement: upgrading filter elements to handle higher frequencies required by the new scanner. Pi-filters rated for 1.5T may not attenuate adequately at 3T Larmor frequencies.
- Joint resealing: re-soldering or re-gasketing panel joints that show SE degradation. This is labor-intensive but far less disruptive than full panel replacement.
- Waveguide modifications: verifying that existing waveguide dimensions still provide adequate cutoff at the higher Larmor frequency. Smaller waveguide cross-sections may be needed for 3T.
Full Cage Replacement
A complete tear-out and rebuild is necessary when:
- The existing shielding material (panel thickness or type) cannot achieve the required SE at the new frequency, even with perfect joints and seals
- Structural corrosion or water damage has compromised the cage integrity beyond repair
- The room dimensions need to change to accommodate a larger scanner bore or revised zone layout
- The original installation quality was poor and the cost of repairing every joint exceeds the cost of replacement
Modern prefabricated modular panel systems make full replacement faster than traditional site-built cages. A complete cage can typically be demolished and rebuilt in 2–4 weeks, depending on room size and complexity.
Minimizing Downtime
For imaging centers where every day of scanner downtime represents lost revenue, minimizing the retrofit timeline is a primary concern. Strategies include:
- Prefabrication: all new shielding components (door, window, panels, penetration panel) are manufactured off-site to exact dimensions before the old scanner is decommissioned. Installation begins immediately after magnet removal.
- Phased work: for partial retrofits, some component upgrades (e.g., penetration panel filters, waveguide modifications) can be performed during scheduled scanner maintenance windows, leaving only the door and window replacement for the main shutdown.
- Night and weekend shifts: shielding contractors experienced in hospital environments can work extended hours to compress the installation timeline without disrupting daytime clinical operations in adjacent areas.
- Parallel coordination: the shielding retrofit is scheduled in parallel with the old scanner removal and new scanner delivery, so the room transitions directly from demolition to shielding to magnet installation without idle gaps.
A well-coordinated partial retrofit (door + window + penetration panel) can often be completed in 5–7 working days. A full cage replacement typically requires 15–20 working days including SE testing and interior finishing.
Cost Factors
Retrofit costs vary widely based on the scope of work, but understanding the main cost drivers helps with budgeting:
- Scope: a door-only replacement may cost 15–25% of a full cage price. A door + window + penetration panel upgrade typically runs 30–45%. A full cage replacement is 100% of a new installation cost.
- Material choice: copper shielding is more expensive than aluminum, but may be required to achieve the SE levels demanded by 3T and higher-field systems.
- Demolition and disposal: removing the existing cage adds cost, particularly if asbestos, lead paint, or other hazardous materials are present in the surrounding building structure (common in older hospitals).
- Interior finishing: the shielding cage is a structural layer — after installation, drywall, flooring, ceiling, lighting, and patient-comfort features must be reinstalled. These finishing costs can equal or exceed the shielding hardware cost.
- SE testing and certification: a full IEEE 299 test by an independent testing firm is required after any significant shielding modification. This is typically included in the shielding contractor's scope.
Requesting a detailed assessment and quote from a specialized shielding contractor — before committing to the scanner purchase — ensures that the retrofit budget is realistic and integrated into the overall MRI replacement project plan.
Frequently Asked Questions
Can I upgrade from 1.5T to 3T without replacing the entire Faraday cage?
In many cases, yes. If the existing wall and ceiling panels achieve adequate SE at the higher Larmor frequency (127.74 MHz for 3T), a partial retrofit — replacing the RF door, observation window, and penetration panel — may be sufficient. A full SE assessment at the 3T operating frequency is required to confirm whether a partial or full upgrade is needed.
How long does an MRI shielding retrofit take?
A partial retrofit (door, window, penetration panel) typically takes 5–7 working days. A full cage replacement requires 15–20 working days including demolition, installation, SE testing, and interior finishing. Prefabrication of components before the shutdown begins significantly reduces on-site time.
How do I know if my existing shielding needs upgrading?
The definitive answer comes from a comprehensive SE test performed at the frequencies required by the new MRI scanner. If SE at any measurement point (especially the door, window, and penetration panel) falls below the manufacturer's specification, that component needs upgrading. Annual SE spot checks can also reveal gradual degradation before a scanner replacement is planned.
Is it cheaper to retrofit or build a new MRI room?
Retrofitting an existing room is almost always less expensive than building a new MRI suite from scratch, because the structural shell, MEP infrastructure, and much of the shielding may be reusable. A targeted component upgrade (door, window, filters) can cost 15–45% of a complete new cage. However, if the existing room requires extensive structural changes or the shielding is severely degraded, a full replacement may be more cost-effective in the long run.
What happens to the old shielding materials during a retrofit?
Copper and aluminum shielding panels have significant scrap value and are typically recycled. The shielding contractor handles demolition and disposal as part of the project scope. If the surrounding building structure contains hazardous materials (asbestos, lead paint), specialized abatement may be required before the shielding tear-out can proceed.
